643415-1
Manufacturer:
TE Connectivity
Mfr.Part #:
643415-1
Datasheet:
Description:

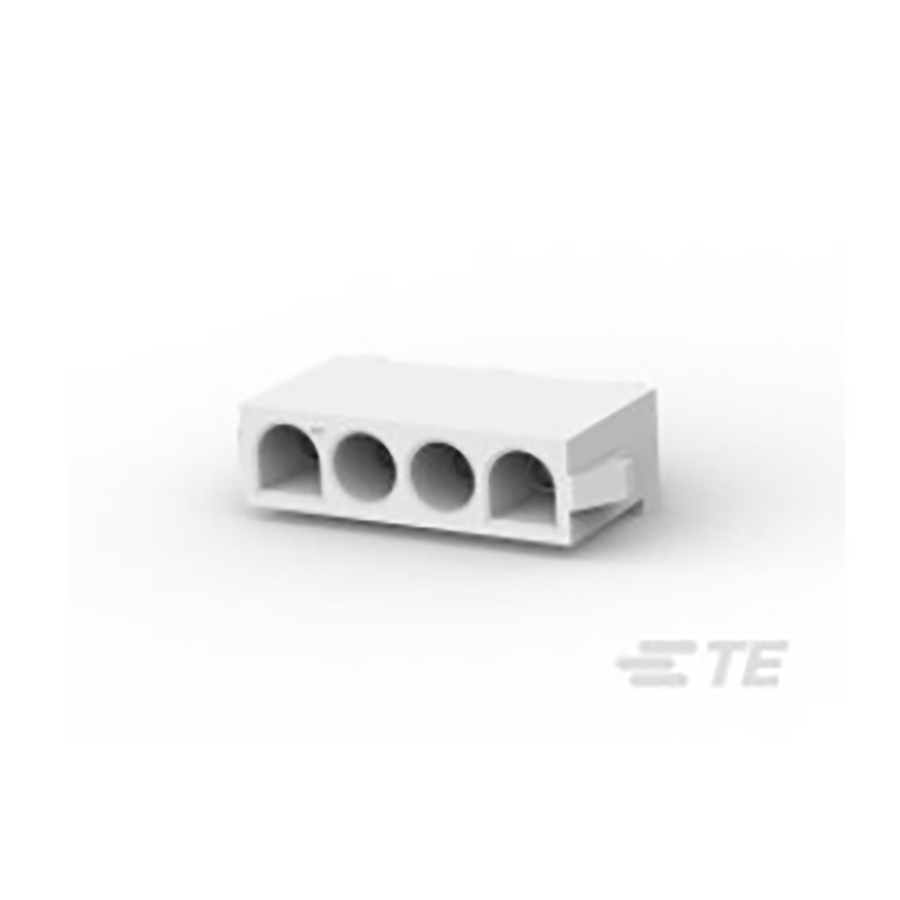

Power Connectors Through Hole Current Rating:19 A Voltage Rating:600 V Socket Receptacle
| Parameter | Value |
|---|---|
| Length | 13.97 mm |
| Width | 20.67 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 7.62 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 6.35 mm |
| Number of Terminals | 4 |
| Current Rating | 19 A |
| Max Voltage Rating (DC) | 600 V |
| Flammability Rating | UL94V-2 |
| Approvals | CSA |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 4 |
| Connector Type | Socket |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 12 A |
| Housing Color | Natural |
| PCB Thickness | 3.18 mm |
| Contact Gender | Female |
| Number of Power Positions | 4 |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 40
Distributors
pcbx
pcbxUnit Price$0.89520
Ext.Price$0.89520
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.89520 | $0.89520 |
| 10 | $0.73229 | $7.32290 |
| 25 | $0.66552 | $16.63800 |
| 50 | $0.60484 | $30.24200 |
| 100 | $0.54970 | $54.97000 |
| 300 | $0.52656 | $157.96800 |
| 500 | $0.50440 | $252.20000 |
| 1000 | $0.48471 | $484.71000 |
